BlueLink ELD

Simply plugs into your vehicle’s ECM.
Detects and Auto-Switches between J1939, J1708, OBDII Protocols- All-in-one device.
Get a price quote

Sends Via Bluetooth BLE 4.1 The Engine Diagnostics Data To Any Device

BlueLink is the ideal ELD Device to be used with smartphones or broadband tablets, for fleets looking for ELD compliance with basic fleet management. BlueLink plugs into the vehicle's ECM port (J1939, J1708 or OBDII port), automatically detects and switches between them and sends via BLE to any ELD App the engine diagnostics data required by FMCSA for ELD compliance including: Odometer, Engine Hours, Engine ON / OFF. Over and above the FMCSA requirements, BlueLink ELD also sends additional engine data such as: fuel level, fuel consumption and major engine diagnostic codes.

Bluelink eld device -Wireless Links
bluelink eld
Wireless Links Bluelink eld front
bluelink eld Front
Wireless Links Bluelink eld
Bluelink eld
ELD BlueLink Solution Wireless Links
Bluelink ELD Solution

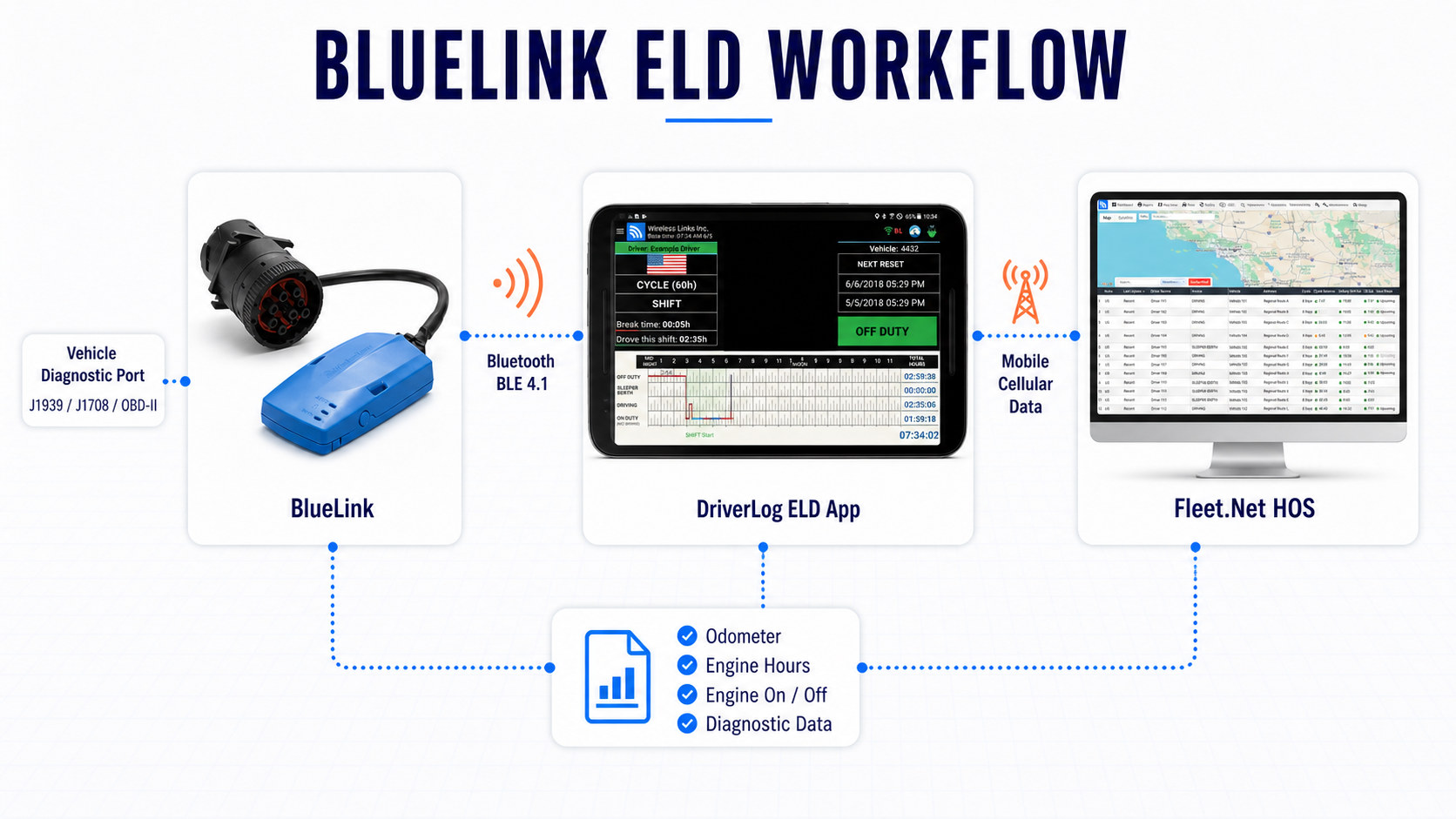

How It Works

Plug & Play Installation

BlueLink plugs into the vehicle’s ECM port via a J1708 (6pin), J1939 (9pin), J1708/J1939 (9pin) dual pass through connector or an OBDII connector.

BLE Connectivity

Sends via Bluetooth BLE to the DriverLog Logbook app the engine diagnostics data required by FMCSA & Canadian DOT for ELD compliance including: Odometer, Engine Hours, Engine ON / OFF.

Periodic Engine Diagnostic Codes

BlueLink ELD sends periodic engine diagnostic codes as they appear to be displayed on the device for the driver and forwarded by the device to the fleet management server via the cellular data plan of the device.

CAN Bus Interface

BlueLink ELD also sends additional engine data such as: fuel level, fuel consumption and more.

Features

BLE 4.1

BlueLink transfers the Jbus data to any tablet or smartphone via Bluetooth.

Instant Link-up

BlueLink is easy to set up and pair to any device.

Engine Diagnostics

Reads and transfers the vehicle's ECM data to any device.

Plug & Play Installation

Simply plug BlueLink into the vehicle's ECM port-with a 9-Pin, 6-Pin or OBDII Light / Heavy Duty Plug & Play Harness. Unique Pass-through connector allows access to ECM port with device plugged in.

Out-of-the-Box Support

One device reads all- support all standard ECM protocols- J1939, J1708 & OBDII

Technical Specifications

  • 2.4Ghz BLE 4.1
  • Operating Temperature: -22º to 176º F (-30º to 80º C)
  • Storage Temperature: -40º to 180º F (-40º to 85º C)
  • Humidity: 0 to 99% 110F (40C), non-condensing
  • Shock/Vibration/Mechanical: meets or exceeds EIA
    standard RS-316B 3G (operating), 20G
    (non \operating) XYZ 3 directions. Meets SAE J1455
  • CANbus J1939 / OBDII
  • RS-485 J1708
  • Two harness options:
    • Plug & Play – 9-PIN, 6-PIN or OBDII Light/Heavy Duty pass-through harnesses.
    • Hard-wire – intrusive connection to the vehicle’s Jbus data wires.
  • Configuration via the BlueLink Admin app available in the Google Playstore
  • 6-32V



  • 2.71″ x 1.49″ x 0.75″ (69mm x 38mm x 19mm)
