Ultra Rugged
Robust, IP67 waterproof enclosure.
The Piccolo ATX, a wireless battery powered GPS tracker is packaged in an ultra rugged IP67 waterproof enclosure with a long battery life of up to 5 years powered by two standard off the shelf C size lithium batteries.
The Piccolo ATX is designed specifically for monitoring non-powered mobile assets over extended periods without external power connections.
Using two off-the-shelf lithium C batteries, the Piccolo ATX can transmit around 3,000 GPS positions on customizable reporting schedules.
Integrated with Wireless Links Fleet.Net cloud platform, asset managers gain real-time visibility, automated geofence entry/exit alerts, motion detection, and unauthorized movement warnings.
Purpose-built for assets without a dependable vehicle-power connection.
Field-replaceable lithium batteries support extended deployments and practical maintenance.
The Piccolo ATX, a wireless battery powered GPS tracker is packaged in an ultra rugged IP67 waterproof enclosure with a long battery life of up to 5 years powered by two standard off the shelf C size lithium batteries.

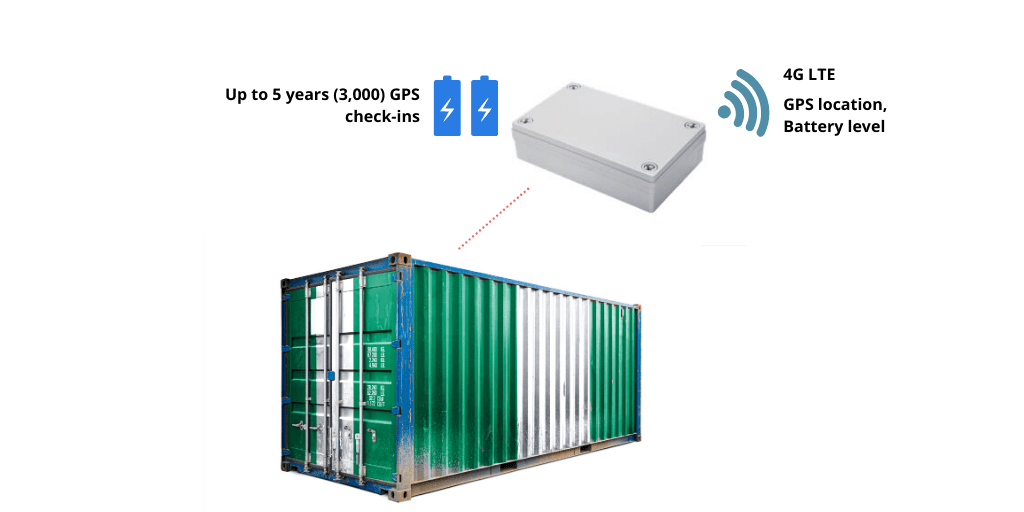

The Piccolo ATX battery powered GPS asset tracker is designed to track unpowered assets such as: Construction Equipment, Containers and Pallets- see how it works below
Robust, IP67 waterproof enclosure.
Powered by two standard off the shelf Type C High Current lithium batteries, that report up to 3,000 positions. The batteries are easily replaced, reducing maintenance to a minimum!
Reconfigure the Piccolo ATX by sending SMS commands.
Asset tracking device alerts on unauthorized movement or vibration, reporting for the duration of vibration and allowing to respond quickly to theft.
ATX can be supplied with a dry contact IO event or open loop detection that wakes up the unit and sends an alarm when an event occurs.
The unit can change the frequency of transmitting GPS when entering a pre-configured geofence to be detected at first wake up.
Sends cell based locations in addition to GPS coordinates.
High accuracy achieved with integrated 66 satellite channel MTK GPS technology.
USB port for firmware download and configuration. USB port powers the unit during configuration.
Extremely low power consumption achieved by innovative battery management to preserve battery life.
With every GPS message, the ATX sends to the server the battery level it currently operates on and current temperature inside the unit.
Vibration sensor – for automatic security theft alarm and motion detection.
Can be preprogramed to send the GPS location every XX hours (usually once a day) when the asset is in stop position.
When vibration is detected the unit wakes up automatically and sends an alarm and switches to motion mode sending GPS every XX minutes for as long as the asset is in motion mode (usually every 60 minutes).
Top Cover Alarm Switch available.
| Connectivity | Network Availability – GSM/GPRS or EDGE/HSPA+ (3G) or 4G CATM NB1 |
| Frequency Bands – 2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ, 4G NB1: Cat.M1 & NB1, LTE-FDD:B1/B2/B3/B4/B5/B8/B12/ B13/B18/B19/B20/B26/B28 LTE-TDD: | |
| GPS Technology | 48 Channel SIRF Star IV | |
| Wireless Sensors | Compatible with WLI Family of RF Beacons | |
| Storage | Store & Forward- Built-in flash storage for data logging up to 5000 messages when out of cellular connectivity |
| Enclosure | Case Material: Polycarbonate Lexan 123R (HB-UV) water proof IP67 enclosure, rated UL94V-0 |
| Dimensions : Small size 5.2″ x 3.2″ x 1.35″ (132mm x 82mm x 34mm). Designed to fit between the container ribs | |
| Weight : 6oz (170g) without the batteries | |
| Operating Temperature: -22° to 176°F (-30° to 80°C) | |
| Storage Temperature: -40° to 221°F (-40° to 105°C) | |
| Humidity : 0 to 99% 110F (40C), non-condensing | |
| Shock/Vibration/Mechanical: meets or exceeds EIA standard RS-316B 3G (operating), 20G (non-operating) XYZ 3 directions. Meets SAE J1455 | |
| Certificates : FCC, CE |
| Power | Standby mode: 40mA at 3V |
| Sleep mode: 45uA at 3V | |
| Transmit mode : 1.8A pulse at 3V | |
| Two off the shelf C size high current lithium batteries, | 3.7 VDC each can transmit around 3000 GPS positions |
| Installation | Four Magnets for mounting on metal surfaces |
| 3M two sided tape | |
| Bolt into place with 4 screws |
