Solar Powered
The solar panel recharges the internal battery at a rate equivalent to up to 7 GPS positions/day, depending on sun and geographical area, leading to an extremely long battery life.
Whether your assets are left at public job sites or high-value machinery is leased out, our construction equipment GPS tracking system provides the security you need. Packaged in a ruggedized, waterproof IP67 enclosure, the solar-powered ATMS offers total peace of mind that your equipment is safe and accounted for.
The Piccolo ATMS combines low-power cellular connectivity with rechargeable battery configurations for unpowered assets.
Choose a 4,000mAh or 7,800mAh rechargeable battery with the documented integrated solar panel for supplemental charging.
Its rugged IP67 enclosure and optional heavy-duty magnetic mount make it easy to transfer between trailers, containers, and heavy machinery.
Select the documented 4,000mAh or 7,800mAh rechargeable battery capacity.
Select a mounting approach suited to containers, chassis, trailers, or equipment.

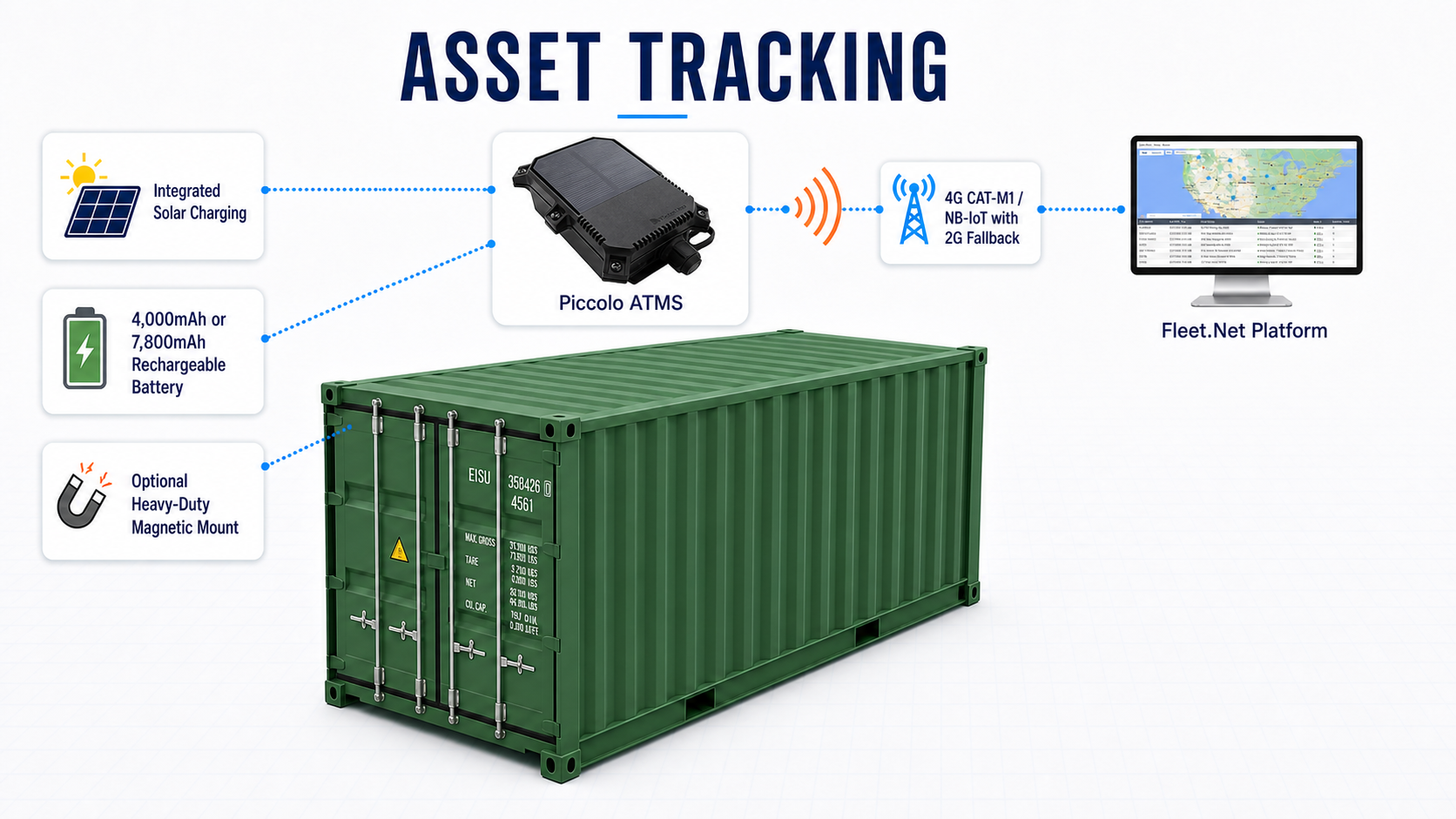

Track containers, trailers, equipment, and other unpowered outdoor assets with solar-assisted charging, flexible battery capacity, and direct cellular visibility in Fleet.Net.
Integrated solar panel recharges the unit at an equivalent rate of around 7 GPS positions/day, removing maintenance needs.
Powered by a large 4000mAh or 7800mAh rechargeable lithium battery
Purpose built to withstand the harshest environments.
The solar panel recharges the internal battery at a rate equivalent to up to 7 GPS positions/day, depending on sun and geographical area, leading to an extremely long battery life.
Programmed to send GPS location every XX hours (usually once a day) when the asset is stationary
Once movement/vibration is detected, the unit wakes up automatically, sends an alarm and switches to motion mode sending GPS every XX minutes for as long as the asset is in motion mode (usually every 60 minutes).
The large solar panel charges the integrated rechargeable lithium battery with power equivalent to the transmission of up to 7 GPS positions a day.
Up to 5,000 GPS positions when powered by the 7800mAh battery pack.
The ATMS can be mounted in place with: heavy duty magnets, mounting bracket or with 3M Heavy Duty Tape.
Reconfigure the Piccolo ATMS by sending SMS commands.
When an event is detected, the Piccolo ATMS is programmable to send an SMS alarm to mobile phones together with the current GPS coordinates.
Designed for harsh environments, the ATMS is housed in a robust IP67 waterproof enclosure.
| CELLULAR FREQUENCY BANDS | Network | 4G CATM1/NB1 with 2G Fallback. Supported bands Cat.M1 & NB1, LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE-TDD: B39 (for Cat.M1 only) GSM850/GSM900/ |
| Storage | Store & Forward- Built-in flash storage for data logging when out of cellular connectivity | |
| Communication | Highly compressed OTA, UDP communication packaged with MidLink Middleware or Direct TCP/IP communication |
| ENCLOSURE | Material | PLUSTEK PB5001J8BK11 Black, 40% Glass Fiber & | Glass beads Reinforced, Halogen and Red Phosphorus Free, Flame Retardant, UV Stabilized Polyamide 6 |
| IP Rating IP67 waterproof enclosure | |
| Dimensions | 4.9” x 3.3” x 1.6” LWD (125mm x 87mm x 41mm) | |
| Weight: 3. 7 oz.(105gr) without batteries | |
| Operating Temperature -22° to 176° F (-30° to 80° C) | |
| Storage Temperature: -40° to 221°F (-40° to 105°) |
| ELECTRICAL SPECS | Power Source | Powered by either 4000mAh or 7800mAh rechargeable lithium battery. |
| Transmit Mode 1.8A pulse at 3VD | |
| Standby Mode 40ma at 3V | |
| Sleep Mode 45uA at 3V | |
| Battery Life Up to 5,000 GPS positions when powered by the 7800mAh battery pack. | |
| Integrated Solar Panel | |
| Charging: Integrated fast charger module. Batteries are charged via external off the shelf standard 12v wall charger. | Charge time around 4-5 hours. |
| INSTALLATION | For portability – Install mounting bracket on any trailer, container and/or asset |
| Magnets – For easy installation on metal surfaces | |
| Two sided 3M Industrial tape- for a strong, permanent attachment | |
| Mount the Piccolo ATMS to the asset with screws |
