GPS Asset Tracking Devices & Solutions – Wireless Links

GPS Asset Tracking
System & Solutions

Gain complete asset visibility and control and maximize asset utilization

With the asset tracking GPS systems by Wireless Links, you can track equipment and on-site assets while improving security, utilization, and uptime. The solution combines the power of the Fleet.Net cloud platform with battery powered GPS asset trackers or solar powered GPS asset trackers, providing real-time visibility on your assets, inventory control, geofence boundary alerts on enter and exit, alerts on unauthorized movement and comprehensive reports such as routes, inventory, battery and in/out reports. Optional sensors such as temperature sensors can be added for temperature control.



See your asset inventory and gain the peace of mind you are lacking by knowing where your assets are at all times, even in remote locations

When assets are stationary, the solution will send location status once a day or any time interval you choose.

Upon unauthorized vibrations/motions or geofence boundary exit, you will receive immediate alerts. You will continue to receive alerts in intervals of 10-60 minutes as long as the asset is moving.

The asset tracking GPS system is Perfect For:

container tracking

Containers

Shipping containers, reefer containers and more.

trailer tracking

Trailers

Track trailers, reefer trailers and any type of trailers.

Heavy Equipment

Track generators, forklifts, light towers and more

Tools

Track onsite tools such as toolboxes, drills, ladders and more

pallet tracking

Pallets

Track high value pallets throughout your supply chain

top features

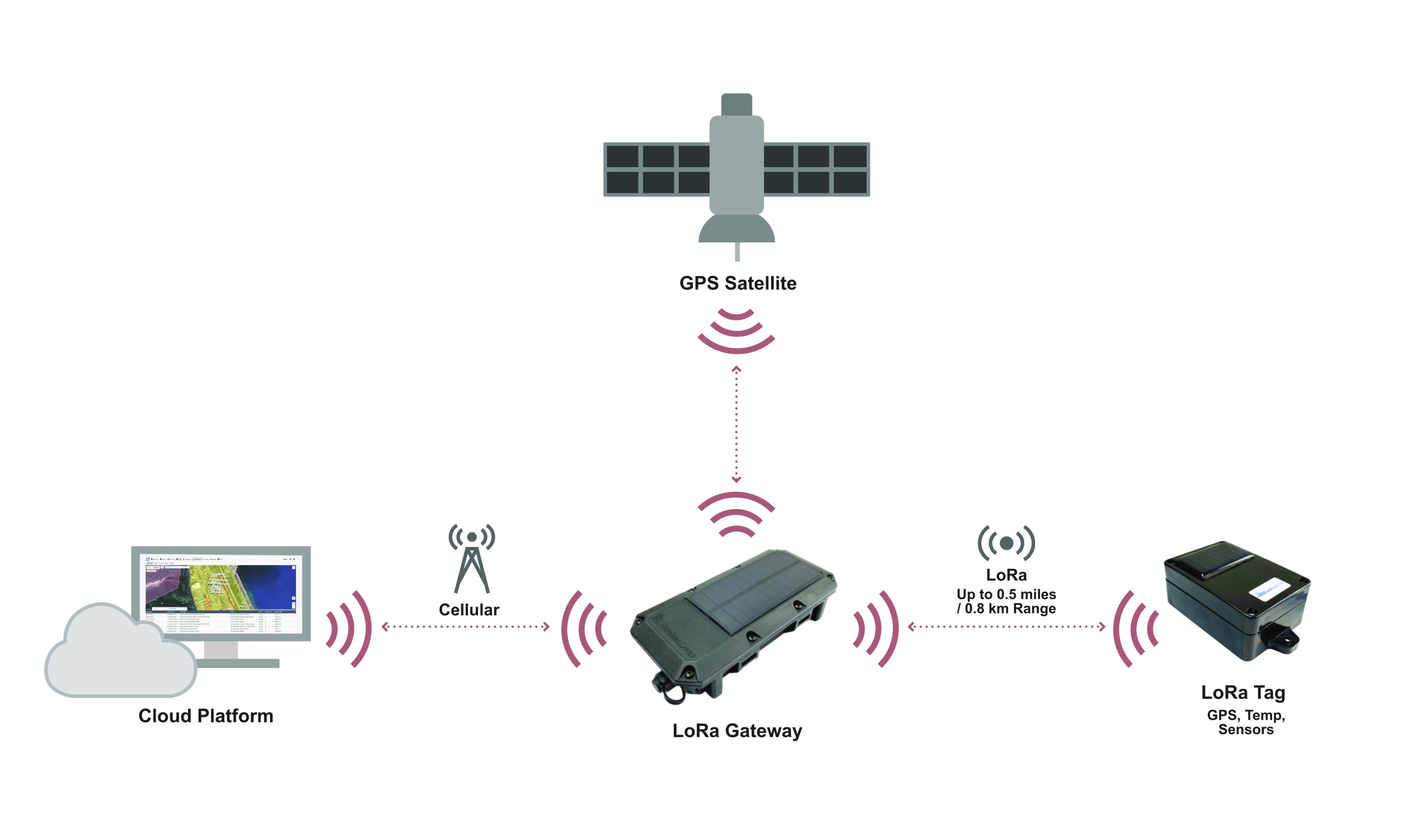

Asset Tracking Solutions - How it works

Our GPS asset tracking system combines a cloud based
gps asset tracking software with GPS asset tracking devices- See how it works below

Benefits

Gain Asset Visibility & Control ​

The GPS asset tracking solution lets you view, monitor and track in real-time the location of every asset within your fleet and quickly see your entire asset inventory.

Ensure Asset and Cargo Security

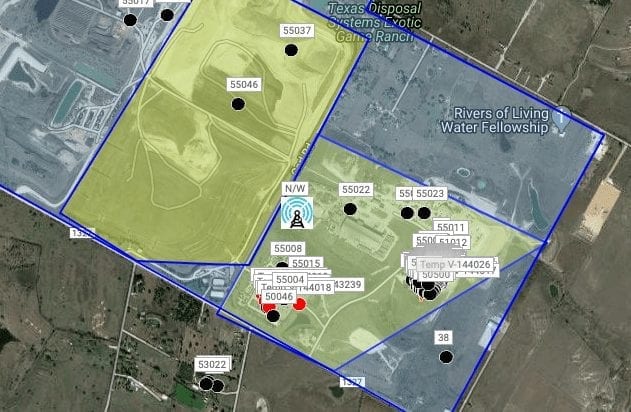

Avoid theft by setting up a geofence boundary radius and even a boundary within a boundary and receive alerts upon exit/entrance of boundary, on door open and close and on sudden vibrations.

Data Reports

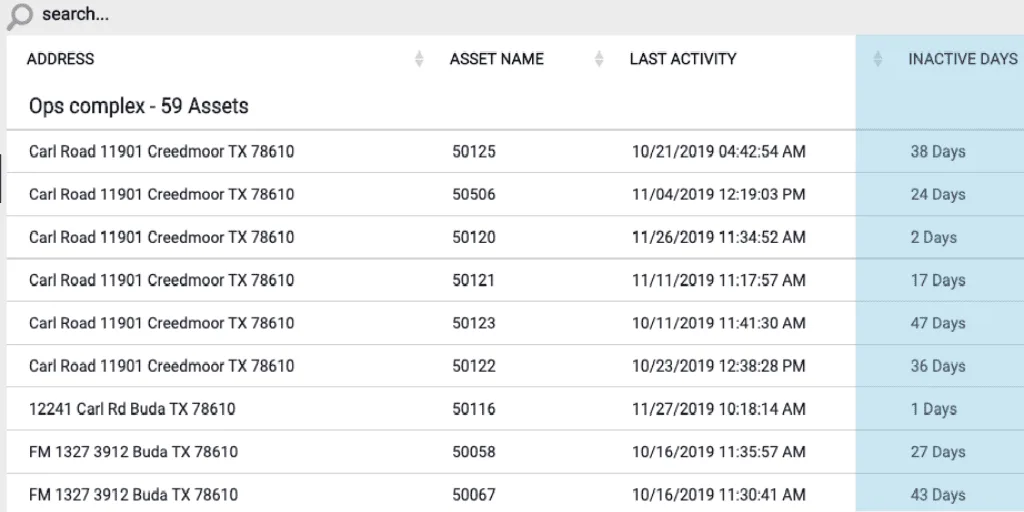

Extract numerous Asset inventory management reports such as geofence in/out, inventory, movement, real-time and historical location data and many more.

reefer container temperature monitoring system

A Complete GPS Asset Tracking System

Add IoT temperature sensors to track the temperature, time and location of refrigerated shipping containers, reefer containers, refrigerated cargos and more and cut the risk of cargo loss and asset damage.

IoT Asset Tracking

Remotely track the movement and locations of your valuable assets and receive key asset tracking data points right to your fingerprints by reading from various sensors including temperature & pressure. Monitor in real-time and avoid crisis on the spot.
Iot monitoring with telematics

We Offer The Following GPS Asset Tracking Hardware To Meet Your Needs & Requirements:

Contact Us to discuss your specific needs and requirements

solar powered asset tracking hardware

Solar Piccolo ATX2S IOT

  • Dimensions: 7.3” x 2.8” x 1.6”
  • Weight: 9oz (255gr) without the batteries
  • Case: IP67 Waterproof enclosure
  • Operating Temperature: -22º to 176º F (-30º to 80º C)
  • Battery: Built- in solar panel extends battery charge up to 15x check-ins/day
  • Lifespan: up to 10,000 check-ins when fully charged
  • Network: 4G CATM1/NB1
  • Sensors: Wireless IoT Tags for temperature, Pressure, engine, vibration alarm, door
  • Pings: Once a day (adjustable), Every 60 minutes when moving (adjustable)
portable wireless asset tracking

Solar Piccolo ATMS IOT

  • Dimensions: 4.9” x 3.3” x 1.6”
  • Weight: 3. 7 oz.(105gr without batteries
  • Case: IP67 Waterproof enclosure
  • Operating Temperature: -22º to 176º F (-30º to 80º C)
  • Battery: Built- in solar panel extends battery charge up to 10x check-ins/day
  • Lifespan: up to 5,000 check-ins when fully charged
  • Network: 4G CATM1/NB1
  • Sensors: Wireless IoT Tags for temperature, Pressure, engine, vibration alarm, door
  • Pings: Once a day (adjustable), Every 60 minutes when moving (adjustable)

Battery Powered Piccolo ATX

  • Dimensions: 5.2″ x 3.2″ x 1.35″
  • Weight: 6oz (170g) without the batteries
  • Case: IP67 Waterproof enclosure
  • Operating Temperature: -22° to 176°F (-30° to 80°C)
  • Battery: 2 standard Type -C high current lithium batteries
  • Lifespan: up to 5 years, 3,000 GPS check-ins on 1x/day
  • Network; 4G CATM1/NB1
  • Sensors: Door
  • Pings: Once a day (adjustable), Every 60 minutes when moving (adjustable)
Solar Powered RFID asset Tag GPS Fleet & Asset Management

Solar Powered RFID Tags

  • Dimensions: 2.63″ x 1.49″ x 0.67″
  • Use Case: Designed for use with a Piccolo IoT telematics unit installed in cabin and RFID tags mounted on assets
  • Case: IP67 Waterproof enclosure
  • Operating Temperature: 180mAh battery: -22º to 176º F (-30º to 80º C) / CR 2450 3v battery: 14º to 176º F (-10º to 80º C)
  • Battery: Integrated 200mAh or 500mAh rechargeable lithium battery
  • Lifespan: RFID tags up to 24-36 months. Solar panel extends battery life to 5 years.
  • Network: 2.4Ghz connectivity via RF at a radius up to 250 ft to Piccolo IoT
  • Sensors: Door & Temperature
  • Pings: On Pick up/Drop off of asset.

Get a Demo and Price Quote

Contact Us to get a demo, discuss your specific needs and receive a price quote

Asset Tracking Solutions- FAQ

Wireless Links offers various solutions for asset tracking.

The battery powered Piccolo ATX has a battery life of up to 5 years on 1 update per day.

The Solar powered Piccolo ATX2S has a battery life of up to 10 years with 1 update per day.

IoT asset tracking lets remotely track the movement and locations of your valuable assets whether large like containers or crates or small such as hammers and tools.

GPS asset tracking hardware are designed to track mobile assets such as container, machines, crates, even in remote locations. For this reason they are usually battery operated and rugged so they can be deployed on assets in remote areas and able to withstand harsh weather conditions.

The best asset tracking software system lets you instantly locate, track usage, and recover assets using geofence alerts.

A GPS asset tracking system system includes asset tracking devices combined with an asset tracking platform, allowing you to gain complete asset visibility and control and maximize asset utilization.

A GPS asset tracking software provides you with a visualized dashboard of your assets on a map. The software will provide metrics such as location, down time and alarms for unauthorized use.

If you want to track the location of the company assets, you will need to mount either GPS asset tracking devices or RFID asset tracking tags on the assets. these work with a cloud platform so you can view location and metrics on your dashboard.

Pricing depends on volume, features and requirements. Talk to us today about your needs and we will provide a price quote.

Installation is simple and is done through magnets, 3M tape or screws.

You can add temperature sensors, pressure sensors or door open and close.

All asset tracking solutions work on 4G LTE Networks Worldwide

Tracking your assets provides you with complete asset visibility and control and allows you to maximize asset utilization. By tracking your assets, you gain 24/7 visibility into the location and status of your assets while achieving proven ROI.
